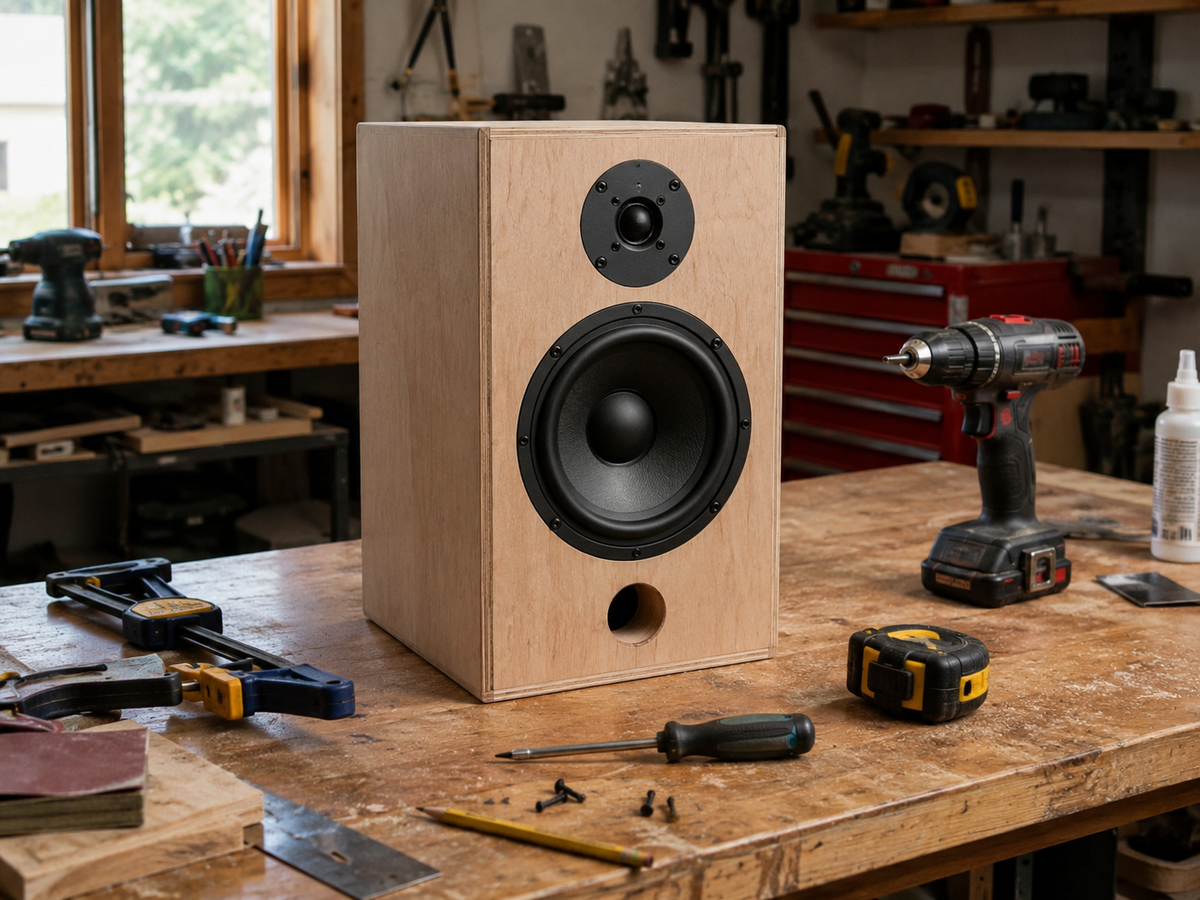

Speaker Building Basics: A Beginner's Guide to Drivers, Enclosures, Crossovers and Tuning

5/29/2026 By Sørensen DIY

Building your own speaker is one of the most rewarding projects in audio. It combines woodworking, electronics, acoustics and a bit of measurement science into one physical object that you can actually listen to.

But speaker building can also become confusing very quickly. You will see terms like Thiele-Small parameters, box tuning, crossover slope, baffle step, impedance, sensitivity, SPL, port velocity and room modes. Each of these matters, but you do not need to master everything at once.

This guide explains the basic speaker design process from start to finish. It also shows where calculators can help you make better early design decisions before you cut wood, buy parts or build a crossover.

1. Start with the purpose of the speaker

A good speaker design starts with the intended use, not with the box.

Before choosing a driver or enclosure, define what the speaker is supposed to do:

  • Is it a small desktop speaker?
  • A hi-fi bookshelf speaker?
  • A studio monitor?
  • A subwoofer?
  • A PA speaker?
  • A floor monitor?
  • A guitar or instrument cabinet?
  • A compact speaker for casual listening?

Each use case has different priorities.

A small desktop speaker may need compact size and smooth nearfield response. A subwoofer needs low-frequency extension and enough excursion. A PA speaker needs efficiency, output and controlled coverage. A studio monitor needs predictable response and good placement.

The biggest beginner mistake is trying to get everything at once: deep bass, high SPL, tiny enclosure, cheap drivers and simple crossover. In real speaker design, every choice is a trade-off.

2. Choose the driver before designing the box

The loudspeaker driver determines much of the design. You cannot choose a random box size and expect any driver to work well in it.

For woofer and subwoofer design, the most important driver data usually includes:

  • Fs — resonant frequency of the driver
  • Vas — equivalent compliance volume
  • Qts — total Q of the driver
  • Re — DC resistance
  • Sd — cone area
  • Xmax — maximum linear excursion
  • Pe — power handling
  • Sensitivity — output level at a given input
  • Impedance — nominal electrical load

These values help determine whether the driver is better suited to a sealed box, ported box, subwoofer enclosure or a different design.

A driver with very different parameters can require a completely different enclosure volume and tuning frequency. This is why driver selection and enclosure design should be treated as one system.

Useful tool: Thiele-Small Alignment Calculator

3. Decide between sealed and ported enclosure

Most beginner speaker projects use either a sealed enclosure or a ported enclosure.

Sealed enclosure

A sealed box is usually the simplest design. It has no port, so there is less to tune and fewer mechanical problems.

Typical sealed-box advantages:

  • simpler construction
  • predictable low-frequency roll-off
  • good transient behavior
  • fewer port noise issues
  • easier to make compact
  • often a good choice for first projects

Typical sealed-box limitations:

  • less low bass output than a ported design of similar size
  • may need more amplifier power or EQ for deep bass
  • driver excursion can become high at low frequencies

Ported enclosure

A ported box, also called a bass reflex enclosure, uses a port or vent to increase output around the tuning frequency.

Typical ported-box advantages:

  • more bass output near tuning
  • better efficiency in the low-frequency range
  • useful for subwoofers and larger speakers
  • can reduce cone excursion near the tuning frequency

Typical ported-box limitations:

  • more complex design
  • port length and diameter matter
  • port noise can become a problem
  • the enclosure is usually larger
  • poor tuning can make bass sound boomy or uncontrolled

For a first full-range or two-way speaker, sealed is often easier. For a subwoofer or bass-heavy design, ported can be very effective if calculated carefully.

Useful tools:

4. Calculate the internal box volume

Speaker enclosure volume means internal air volume, not external cabinet size.

This is a common source of mistakes. If you build a box that is 400 mm wide, 300 mm high and 250 mm deep, the internal volume is not calculated from those outside dimensions unless the material thickness is zero.

You must subtract:

  • panel thickness
  • driver displacement
  • port displacement
  • bracing
  • handles, plates or internal hardware
  • internal dividers
  • large crossover boards, if significant

For example, a cabinet made from 18 mm plywood will have much smaller internal dimensions than its outside measurements suggest.

The internal volume affects the low-frequency response of the speaker. A box that is too small may raise the system resonance and reduce bass extension. A box that is too large may reduce mechanical control or allow excessive cone movement, depending on the driver and alignment.

Useful tools:

5. Understand port tuning

In a ported speaker, the port is not just a hole in the box. It is part of a resonant system.

The port tuning frequency depends mainly on:

  • enclosure volume
  • port cross-sectional area
  • port length
  • end correction
  • whether the port is round, flared, rectangular or slot-shaped

A larger port can reduce air velocity and port noise, but it usually needs to be longer. A smaller port is easier to fit inside the box, but it may create chuffing or compression at higher output.

This is especially important in subwoofers. A port that looks reasonable at low volume may become noisy when the speaker is driven hard.

Useful tools:

For early design work, calculate the port before finalizing the cabinet. Otherwise you may discover that the required port is too long to fit inside the box.

6. Do not ignore baffle step

Baffle step is one of the most important concepts in speaker design, especially for bookshelf speakers, studio monitors and small cabinets.

At higher frequencies, the front baffle helps radiate sound forward. At lower frequencies, the sound wraps around the cabinet and radiates more into the full space around the speaker. This transition causes a change in the speaker’s frequency response.

In simple terms:

  • narrow baffle = baffle step occurs at a higher frequency
  • wide baffle = baffle step occurs at a lower frequency
  • free-space placement needs more baffle step compensation
  • wall placement changes the low-frequency balance

If ignored, the speaker may sound thin, bright or lacking in lower midrange warmth.

Useful tool: Baffle Step Calculator

Baffle step is also one reason why the same speaker can sound different on a desk, on stands, near a wall or in free space.

7. Plan the crossover carefully

A crossover divides the audio signal between different drivers. In a two-way speaker, it sends low frequencies to the woofer and high frequencies to the tweeter.

The basic crossover design depends on:

  • crossover frequency
  • driver impedance
  • filter slope
  • acoustic response of the drivers
  • driver spacing
  • directivity
  • phase relationship
  • tweeter power handling
  • woofer breakup behavior

A simple calculator can help estimate component values for a passive crossover, but a final passive crossover should normally be verified with measurements.

This is important because a real speaker driver is not a fixed resistor. Its impedance changes with frequency. Its acoustic output also changes with frequency. A textbook crossover may not produce the intended acoustic result when connected to real drivers.

Useful tool: Passive Crossover Calculator

Use it for learning, first estimates and simple projects. For serious hi-fi or monitor design, measurement-based crossover refinement is strongly recommended.

8. Match the amplifier and speaker

Speaker power handling is often misunderstood.

A speaker rated for 200 watts does not automatically need a 200-watt amplifier. It also does not mean the speaker will sound good at 200 watts. Power handling mainly describes thermal and mechanical limits under defined test conditions.

The practical loudness depends on:

  • speaker sensitivity
  • amplifier power
  • listening distance
  • room or outdoor environment
  • number of speakers
  • low-frequency content
  • distortion limits
  • driver excursion

A more sensitive speaker can play louder than a less sensitive speaker with the same amplifier power. Doubling amplifier power gives only about a 3 dB increase in SPL, assuming the speaker can handle it cleanly.

Useful tools:

9. Think about placement early

Speaker design does not end at the cabinet. Placement has a major effect on what you actually hear.

A speaker near a wall will have more boundary reinforcement than a speaker placed far into the room. A speaker in a corner will usually produce even more bass reinforcement. A studio monitor on a desk may suffer from early reflections and comb filtering.

For stereo listening, placement also affects imaging.

Important placement factors include:

  • distance from front wall
  • distance from side walls
  • listening triangle geometry
  • tweeter height
  • toe-in angle
  • room symmetry
  • desk reflections
  • subwoofer position

Useful tools:

Even a well-designed speaker can sound poor in a bad position. Placement should be part of the design process, not an afterthought.

10. Build the cabinet properly

A speaker cabinet should be stiff, airtight and well damped.

Common cabinet materials include:

  • MDF
  • birch plywood
  • hardwood plywood
  • particle board
  • composite panels

MDF is easy to machine and common in hi-fi speaker building. Birch plywood is strong, durable and often preferred for PA cabinets and portable boxes.

Important construction details:

  • use enough material thickness
  • brace larger panels
  • seal all internal joints
  • avoid air leaks
  • mount the driver securely
  • use gasket tape where needed
  • round over or chamfer baffle edges when appropriate
  • account for internal displacement
  • keep the port opening clear
  • prevent wires from rattling

Panel resonance can color the sound. Air leaks can ruin bass response, especially in sealed designs. Loose hardware can create buzzes that are difficult to diagnose later.

11. Use damping material correctly

Internal damping material can reduce reflections and standing waves inside the enclosure.

Common materials include:

  • polyester fiber
  • acoustic foam
  • wool felt
  • fiberglass
  • bonded acoustic material

In sealed boxes, damping can make the enclosure behave as if it is slightly larger acoustically. In ported boxes, damping must be used more carefully because material near the port can reduce port efficiency or create noise.

Do not block the port. Do not allow loose material to touch the rear of the cone or fall into the vent.

12. Measure and test the result

Calculators are useful for design, but measurements reveal what the speaker actually does.

Useful things to test include:

  • frequency response
  • impedance
  • polarity
  • distortion
  • port noise
  • cabinet leaks
  • rattles
  • crossover behavior
  • nearfield woofer and port response
  • listening position response

A basic measurement setup can include:

  • measurement microphone
  • audio interface
  • measurement software
  • quiet room
  • repeatable microphone position

You do not need a professional lab to learn from measurements. Even simple measurements can show whether the speaker is behaving roughly as expected.

13. Common beginner mistakes

Many first speaker projects fail because of avoidable mistakes.

Choosing a driver only by size or wattage

A 12-inch driver is not automatically better than an 8-inch driver. A 500-watt rating does not guarantee deep bass or high sound quality.

Ignoring Thiele-Small parameters

The enclosure should be designed around the driver’s parameters. Guessing the box size usually leads to poor results.

Using outside dimensions as box volume

Internal volume must subtract panel thickness and internal displacement.

Making the port too small

A small port may tune correctly on paper but become noisy at higher output.

Choosing a crossover frequency too low for the tweeter

Tweeters can be damaged or distorted if crossed too low, especially with shallow slopes.

Trusting textbook crossover values too much

Real drivers do not behave like perfect resistors. Measurement is needed for accurate passive crossover design.

Ignoring baffle step

A speaker can sound thin or bright if baffle step is not considered.

Expecting deep bass from a tiny box

Small enclosure, deep bass and high output are difficult to achieve at the same time.

Not testing for air leaks

Air leaks can reduce bass performance and create unwanted noises.

14. A practical beginner workflow

Here is a sensible order for a first speaker project:

  1. Define the speaker’s purpose.
  2. Choose the driver or drivers.
  3. Collect the driver parameters.
  4. Estimate the best enclosure type.
  5. Calculate the internal box volume.
  6. Design the cabinet dimensions.
  7. Calculate the port, if using a ported design.
  8. Check baffle step.
  9. Estimate SPL and amplifier power needs.
  10. Plan the crossover.
  11. Build the cabinet carefully.
  12. Test for leaks, rattles and polarity.
  13. Measure the response.
  14. Adjust damping, placement or crossover if needed.

Useful starting tools:

Conclusion

Speaker building is not just woodworking, and it is not just electronics. A good loudspeaker is a complete system where the driver, enclosure, port, crossover, amplifier and room all interact.

For beginners, the best approach is to keep the first design manageable. Choose a suitable driver, calculate the enclosure properly, avoid overly complex crossover goals and test the result before expecting perfection.

Calculators can help you make better early decisions, but they are starting points, not substitutes for listening, measuring and refining. Once you understand the basic trade-offs, speaker building becomes much less mysterious — and much more enjoyable.
